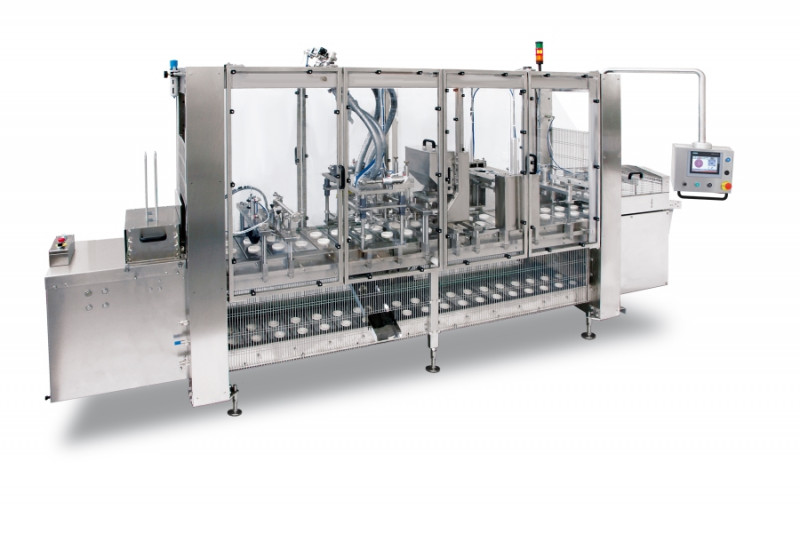

Gemini
Gemini fill-seal machines are built to measure for the most demanding customers in performance, flexibility and reliability.
About Gemini
The configuration goes from 1 to 10 rows depending on package size, for outputs up to 15,000 pieces per hour.
The frame is sturdy AISI 304 stainless steel built from folded and ribbed plate, with stainless panels protecting water-sensitive parts. Tray drag chains are stainless steel, resistant to the chemicals used in washing.
Each steel tray is designed for the customer’s packages and can include aluminium containment rings or polyzene cavities. A PLC with intuitive touch-screen HMI coordinates every phase, and all electrical parts are placed at the top of the machine to protect them during washing.
Customisable processing stations
- Destacker with vertical magazines
- UV-ray disinfection
- Timed or volumetric dosing
- Manual dosing area with safety guards
- Granulator and vibrating station
- Sealing with pre-cut disc or film, with or without MAP/vacuum
- Lid destacking and lidding
- Tamper-evident, removal, robot or pick-and-place integration
- Ink-jet or laser printing
Technical data
| Rows | 1 – 10 |
|---|---|
| Output | Up to 15,000 pcs/h |
| Frame | AISI 304 stainless steel |
| Control | PLC with touch-screen HMI |
Data are indicative. Every machine can be customised to your requirements.
Packaging technologies supported
Sealing
Perfect seal between tray and any compatible film.
Modified atmosphere
Controlled gas mix to preserve fresh food longer.
Interested in Gemini?
Describe your product, package type and required hourly output. Our technical team will reply within 2 working days with a tailored proposal.
